BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio : General

In this BLOGoZON we take a look at the C major-minor arpeggio box shapes and join them all together
for 5-string bass (Low B - BEADG) to form one long BAGED octaves chain.

BAGED octaves logo

The BAGED octaves sequence is shown for C natural in the diagram that follows:-

BAGED octaves fingerboard : C natural octaves

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all five of the BAGED octaves shapes for use with the
box shapes for a 5-string bass (Low B - BEADG).

5-String Bass (Low B) : C natural octaves

The diagrams that follow show all of the C major-minor arpeggio notes plotted over the
5-string bass' fretboard in the BAGED octaves.

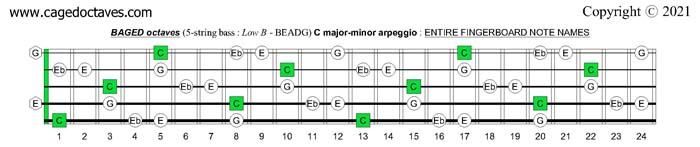

BAGED octaves fingerboard C major-minor arpeggio notes

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C major-minor arpeggio are detailed below in the BAGED octaves manner.

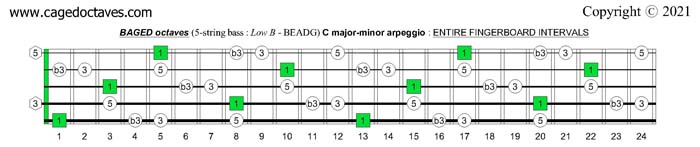

BAGED octaves fingerboard C major-minor arpeggio intervals

The tables and tabbed panels below detail all five box shapes
for the C major-minor arpeggio in the BAGED octaves style.


BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio box shapes

YouTube icon

Flash iconGuitar Pro 6 icon

BAGED octaves C major-minor arpeggio : 5B3 box shape
BAGED octaves C major-minor arpeggio : 3A1 box shape
BAGED octaves C major-minor arpeggio : 4G1 box shape
BAGED octaves C major-minor arpeggio : 4E2 box shape
BAGED octaves C major-minor arpeggio : 5D2 box shape
BAGED octaves C major-minor arpeggio : 5B3 box shape at 12

BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio box shapes

  • 5B3
  • 3A1
  • 4G1
  • 4E2
  • 5D2
  • 5B3 at 12

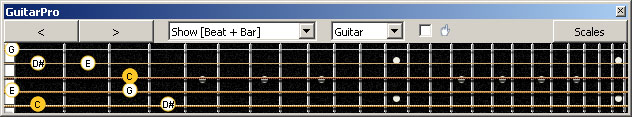

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 5B3 box shape

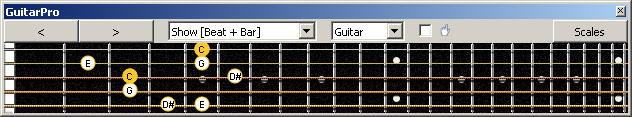

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 3A1 box shape

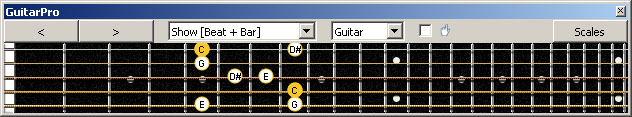

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 4G1 box shape

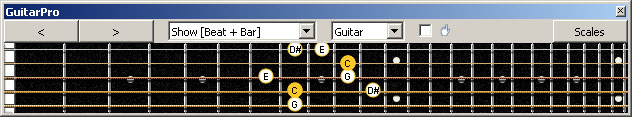

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 4E2 box shape

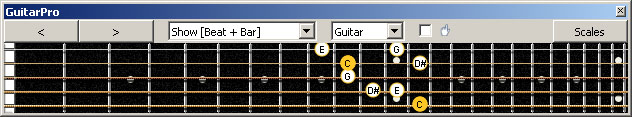

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 5D2 box shape

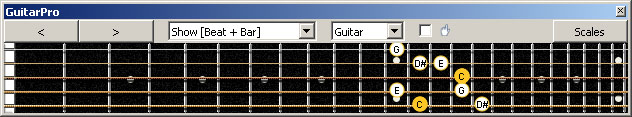

GuitarPro6 (5-string bass : Low B) C major-minor arpeggio : 5B3 box shape at 12


BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio box shapes

  • 5B3
  • 3A1
  • 4G1
  • 4E2
  • 5D2
  • 5B3 at 12

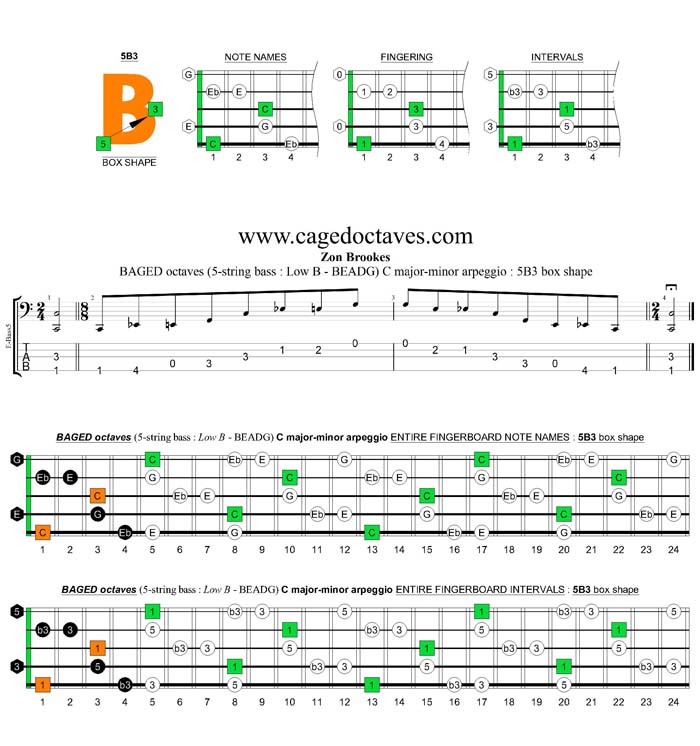

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 5B3 box shape

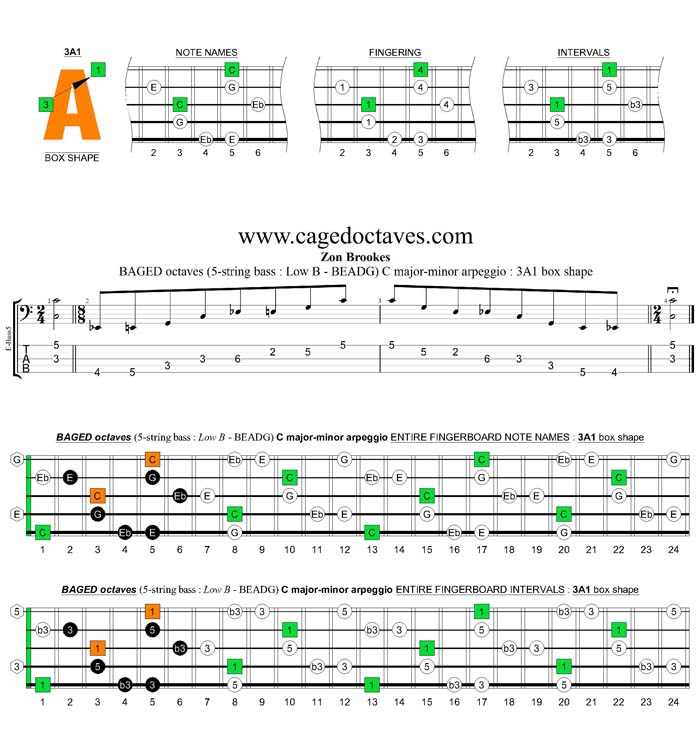

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 3A1 box shape

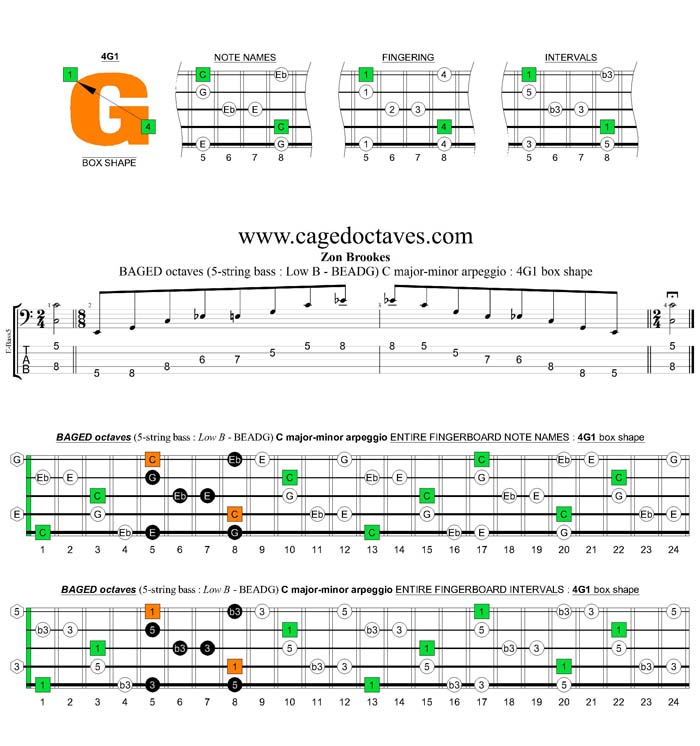

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 4G1 box shape

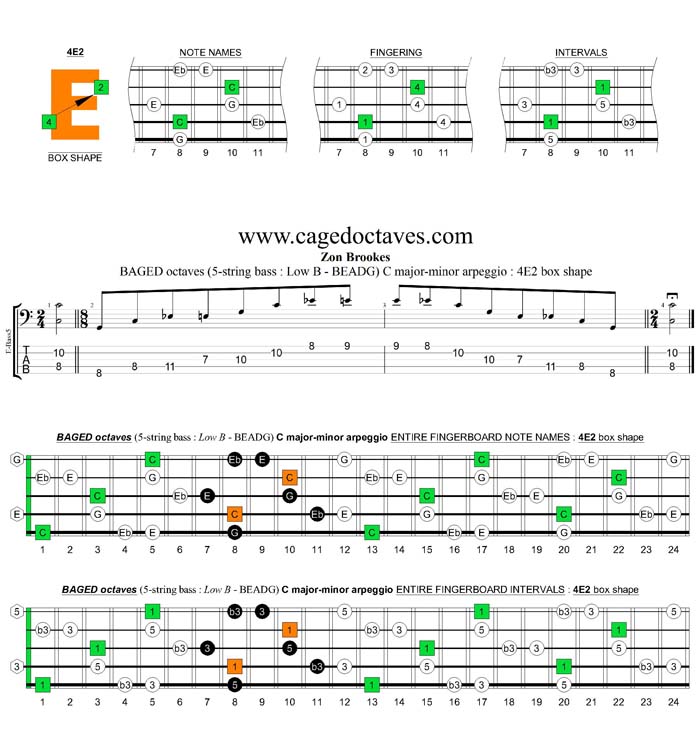

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 4E2 box shape

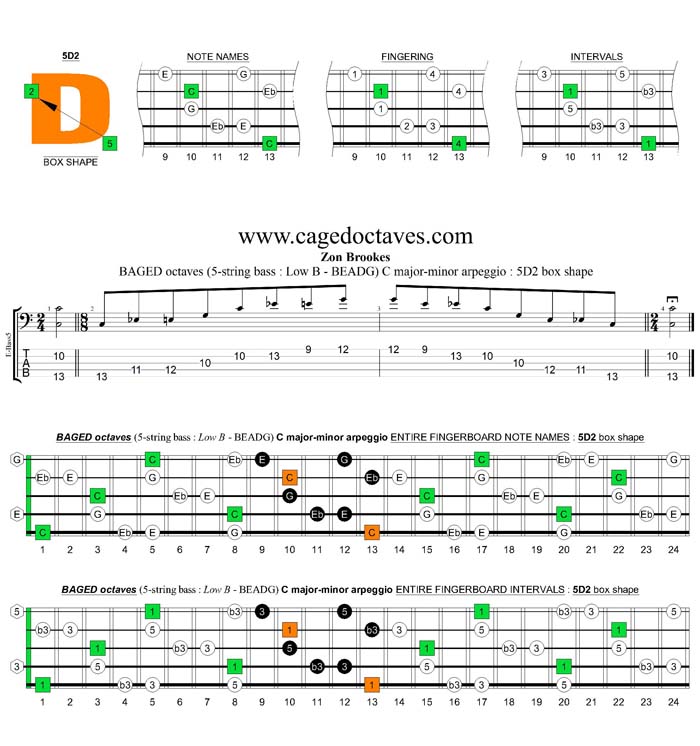

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 5D2 box shape

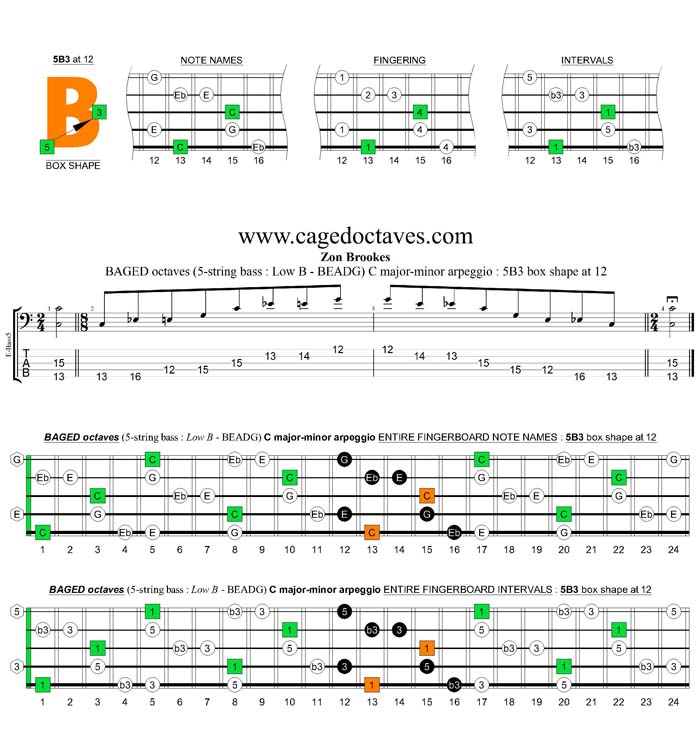

BAGED octaves (5-string bass : Low B) C major-minor arpeggio : 5B3 box shape at 12


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5B3 - being repeated at the 12th fret).

The video shown to the right demonstrates the BAGED octaves chain-linked sequence for the C major -minor arpeggio box shapes.

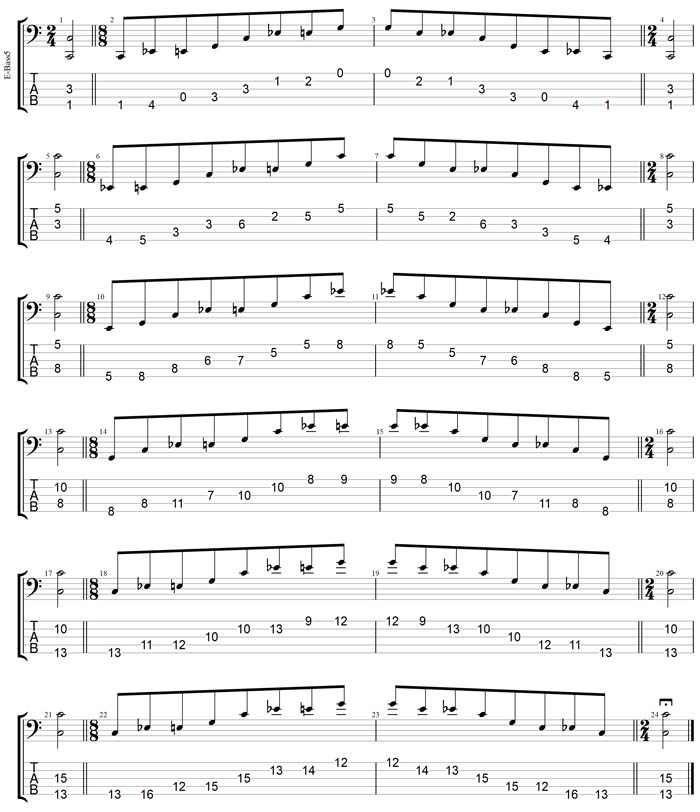

The complete TAB for the previous exercise follows:-

GuitarPro7 TAB: C major-minor arpeggio box shapes


The box shapes for the previous exercise follow:-

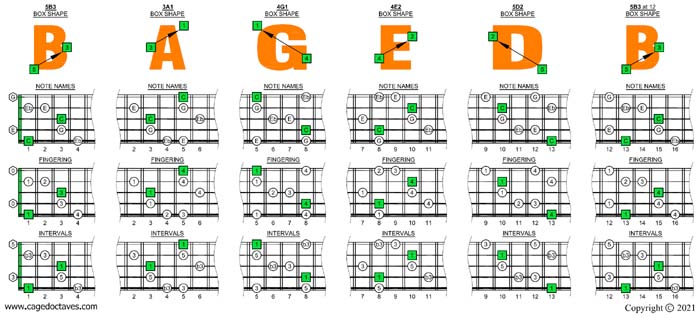

BAGED octaves (5-string bass: Low B - BEADG) - C major-minor arpeggio box shapes

BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio
Box shapes pdf & GuitarPro6 TAB pdf

Flash iconGuitar Pro 6 icon

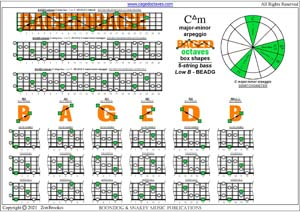

BAGED octaves (5-string bass: Low B - BEADG) - C major-minor arpeggio box shapes pdf

GuitarPro7 TAB: C major-minor arpeggio box shapes pdfGuitarPro7 TAB: C major-minor arpeggio box shapes pdf


BAGED octaves : 5-string bass (Low B - BEADG)
C major-minor arpeggio : Overall fretboard box shapes

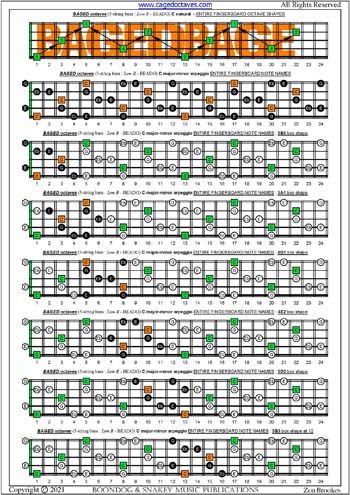

BAGED octaves (5-string bass: Low B - BEADG) fingerboard C major-minor arpeggio notes pdf

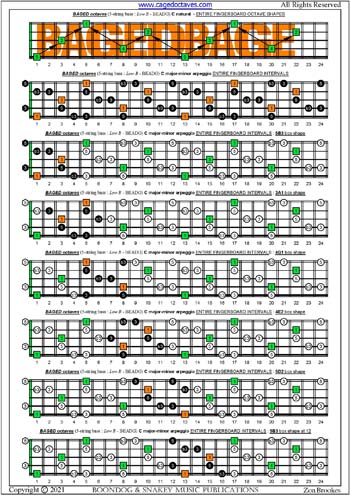

BAGED octaves (5-string bass: Low B) fingerboard C major-minor arpeggio intervals pdf
