AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps : General

In BLOGoZON No.585 the standard box shapes for the A pentatonic minor scale
were presented using the AGEDC4BASS methodology for 4-string bass (Low E - EADG).

AGEDC4BASS logo


In this BLOGoZON we look at the A pentatonic minor scale, again, but with pseudo 3nps patterns
and join them all together to form one long AGEDC4BASS chain.

The diagram that follows shows all five of the AGEDC4BASS shapes for use with the
pseudo Three-Notes-Per-String patterns for a 4-string bass (Low E - EADG).

pseudo 3nps octave shapes

The conjoined AGEDC4BASS sequence is shown for A natural in the diagram that follows.

AGEDC4BASS A natural octaves fingerboard

GuitarPro6 fingerboard : A natural octaves

GuitarPro6 A natural octaves

The diagram that follows shows all five of the AGEDC4BASS shapes for use with the
box shapes for a 4-string bass (Low E - EADG).

AGEDC4BASS: A natural octaves

The diagram that follows shows all five of the AGEDC4BASS shapes for use with the
box shapes for a 4-string bass (Low E - EADG).

AGEDC4BASS : A natural octaves

The diagrams that follows show all of the A pentatonic minor scale notes plotted over the
4-string bass guitar's fretboard in the AGEDC4BASS style.

A minor pentatonic scale : AGEDC4BASS fingerboard notes

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
A pentatonic minor scale are detailed below in the AGEDC4BASS manner:-

A minor pentatonic scale : AGEDC4BASS fingerboard intervals

The tables and tabbed panels below detail all five box shapes for the A pentatonic minor scale
in the AGEDC4BASS style for 4-string bass (Low E - EADG).


AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps
YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon

AGEDC4BASS A pentatonic mmajor scale : 3Am1:4Gm1 box shape(pseudo 3nps) pdf
AGEDC4BASS A pentatonic mmajor scale : 4Gm1:4Em2 box shape(pseudo 3nps) pdf
AGEDC4BASS A pentatonic mmajor scale : 4Em2:2Dm* box shape(pseudo 3nps) pdf
AGEDC4BASS A pentatonic mmajor scale : 2Dm*:3Cm* box shape(pseudo 3nps) pdf
AGEDC4BASS A pentatonic mmajor scale : 3Cm*:3Am1 box shape(pseudo 3nps) pdf
AGEDC4BASS A pentatonic mmajor scale : 3Am1:4Gm1 box shape at 12 (pseudo 3nps) pdf

AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps : YouTube videos

  • 3Am1:4Gm1

  • 4Gm1:4Em2

  • 4Em2:2Dm*

  • 2Dm*:3Cm*

  • 3Cm*:3Am1

  • 3Am1:4Gm1 at 12

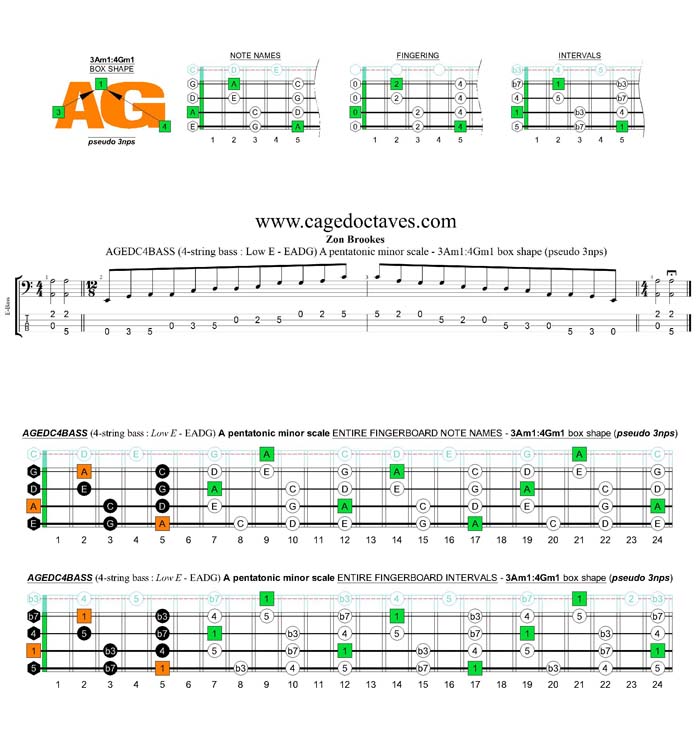

3Am1:4Gm1 box shape (pseudo 3nps)

4Gm1:4Em2 box shape (pseudo 3nps)

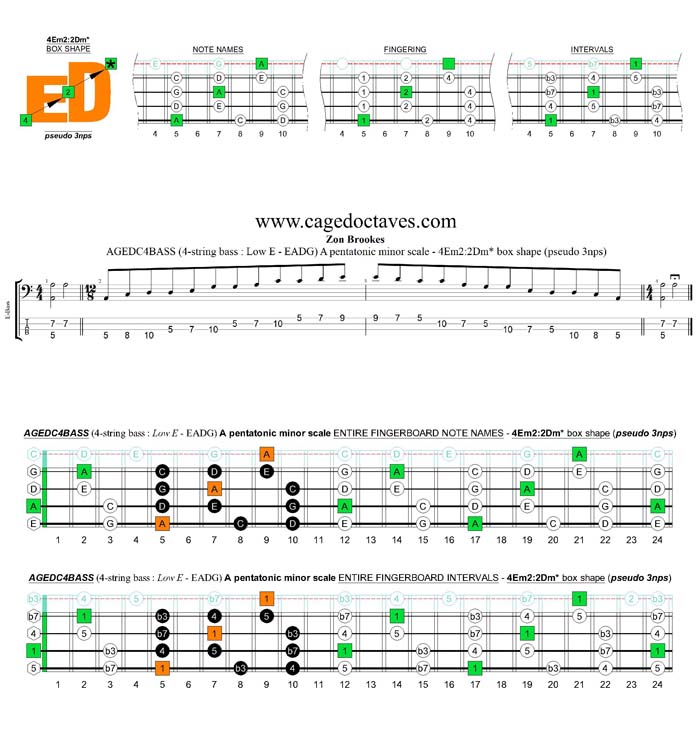

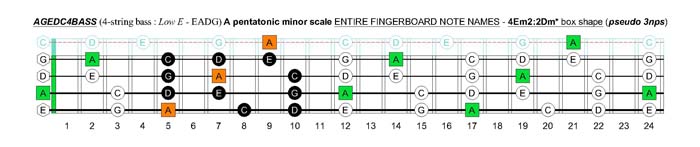

4Em2:2Dm* box shape (pseudo 3nps)

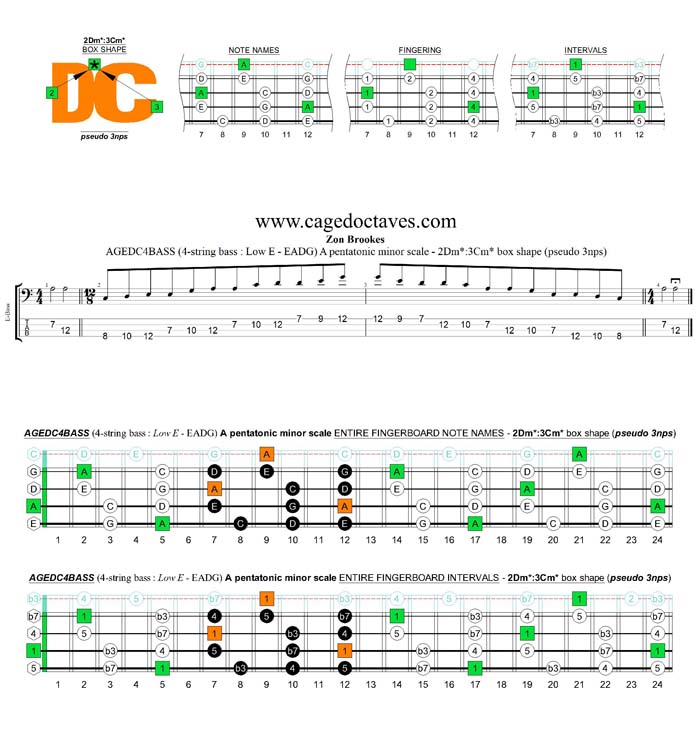

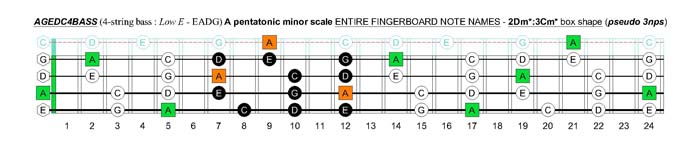

2Dm*:3Cm* box shape (pseudo 3nps)

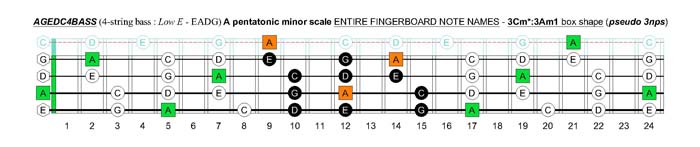

3Cm*:3Am1 box shape (pseudo 3nps)

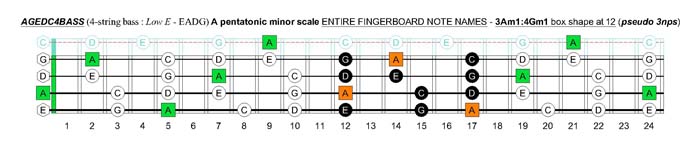

3Am1:4Gm1 at 12 box shape (pseudo 3nps)


AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps : Box shapes & TAB

  • 3Am1:4Gm1

  • 4Gm1:4Em2

  • 4Em2:2Dm*

  • 2Dm*:3Cm*

  • 3Cm*:3Am1

  • 3Am1:4Gm1 at 12

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape

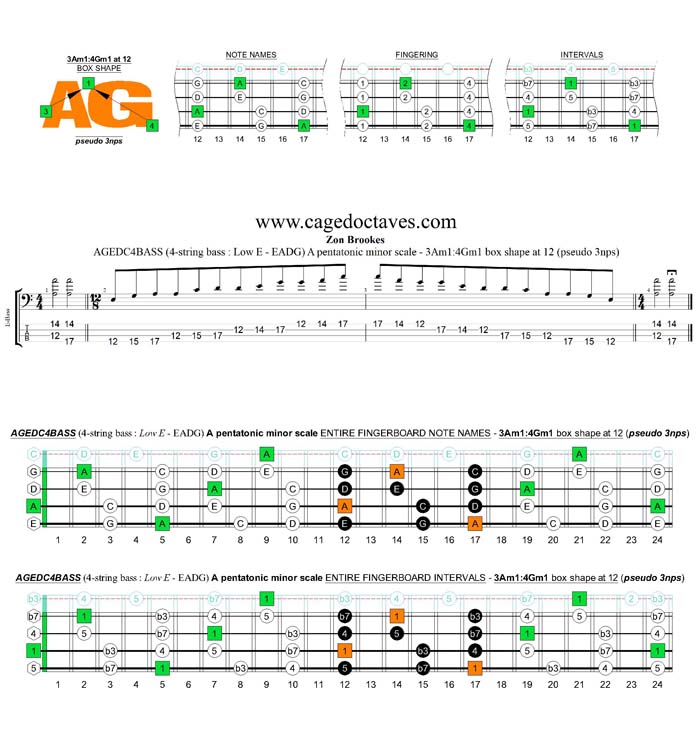

AGEDC4BASS A pentatonic minor scale - 3Am1:4Gm1 (pseudo 3nps) box shape


Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 3Am1:4Gm1 - being repeated at the 12th fret).

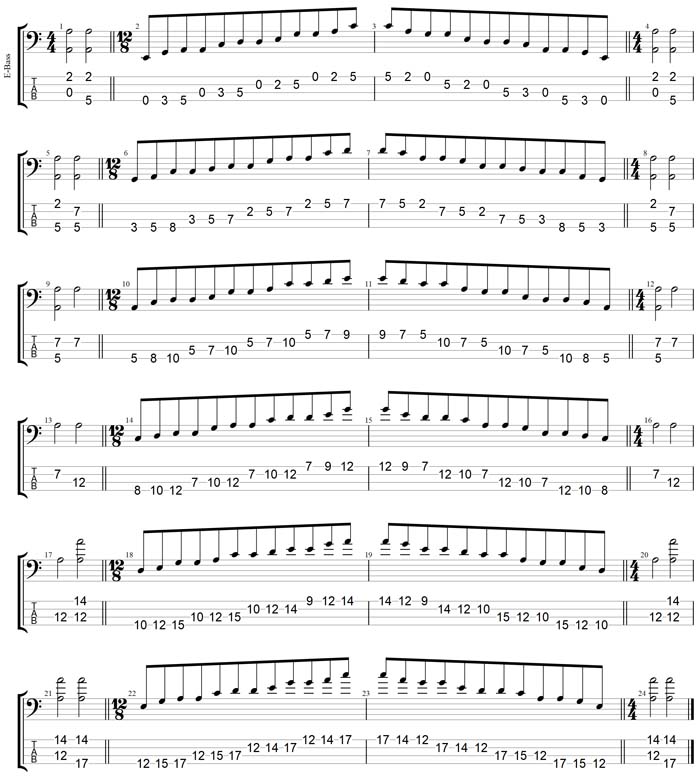

The complete TAB for the previously described exercise follows:-

GuitarPro7 TAB: A pentatonic minor scale (pseudo 3nps) box shapes


The box shapes for the previous exercise follow:-

AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes

AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps
Box shapes pdf & GuitarPro7 TAB pdf

Flash iconGuitar Pro 6 icon

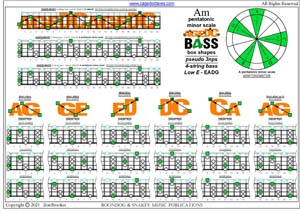

AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes pdf

GuitarPro7 TAB: AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes pdfGuitarPro7 TAB: AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes pdf


AGEDC4BASS : 4-string bass (Low E - EADG)
A pentatonic minor scale - pseudo 3nps
Overall fretboard box shapes

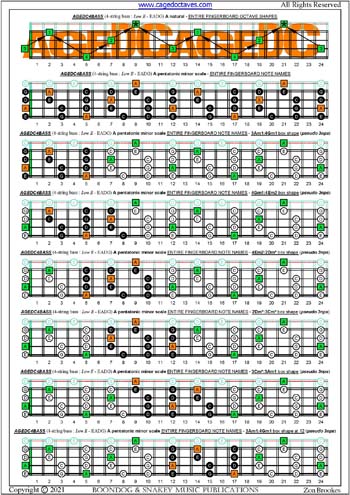

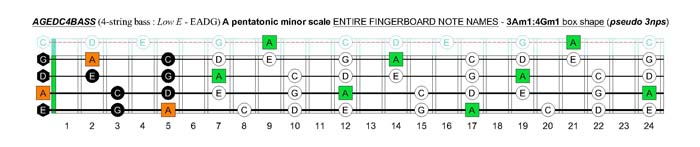

AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes : entire fretboard notes

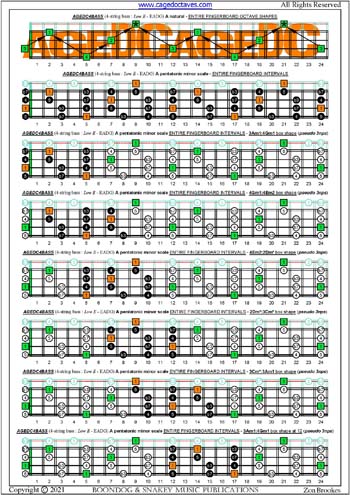

AGEDC4BASS A pentatonic minor scale (pseudo 3nps) box shapes : entire fretboard intervals
