BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps : General

In BLOGoZON No.619 the standard box shapes for the C pentatonic major scale
were presented using the BAGED octaves methodology for 5-string bass (Low B - BEADG).

BAGED octaves logo

In this BLOGoZON we look at the C pentatonic major scale, again, but with pseudo 3nps patterns
and join them all together to form one long BAGED octaves chain.

The diagram that follows shows all five of the BAGED octaves shapes for use with the
pseudo Three-Notes-Per-String patterns for a 5-string bass (Low B - BEADG).

C natural octaves (pseudo 3nps)

The conjoined BAGED octaves sequence is shown for C natural in the diagram that follows:-

BAGED octaves fingerboard : C natural octaves

GuitarPro6 fingerboard : C natural octaves

GuitarPro6 C natural octaves

The diagram that follows shows all five of the AGEDC octaves shapes for use with the
box shapes for a 6-string guitar (E standard: EADGBE).

BAGED octaves (5-string bass : Low B - BEADG) - C natural octaves

The diagrams that follow show all of the C pentatonic major scale notes plotted over the
5-string bass' fretboard in the BAGED octaves and GuitarPro6 styles:-

BAGED octaves fingerboard C pentatonic major scale notes

GuitarPro6 fingerboard : C pentatonic major scale

GuitarPro6 fingerboard : C pentatonic major scale

As always a more long term solution to fretboard navigation is to see scales as INTERVAL shapes
rather than note names - as these are universal to all scales, arpeggios and chords rather than
specific to one particular root note - with this in mind the intervals for the
C pentatonic major scale are detailed below in the BAGED octaves manner:-

BAGED octaves fingerboard C pentatonic major scale intervals

The tables and tabbed panels below detail all five box shapes for the
C pentatonic major scale in the BAGED octaves style.

BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps
YouTube videos & pdf files

YouTube icon

Flash iconGuitar Pro 6 icon
BAGED octaves C pentatonic mmajor scale : 5B3:3A1 box shape(pseudo 3nps)pdf
BAGED octaves C pentatonic major scale : 3A1:4G1 box shape(pseudo 3nps)pdf
BAGED octaves C pentatonic major scale : 4G1:4E2 box shape(pseudo 3nps)pdf
BAGED octaves B pentatonic major scale : 4E2:5D2 box shape(pseudo 3nps)pdf
BAGED octaves B pentatonic major scale : 5D2:5B3 box shape(pseudo 3nps)pdf
BAGED octaves C pentatonic major scale : 5B3:3A1 box shape at 12 (pseudo 3nps)pdf

BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps : YouTube videos

  • 5B3:3A1

  • 3A1:4G1

  • 4G1:4E2

  • 4E2:5D2

  • 5D2:5B3

  • 5B3:3A1 at 12

5B3:3A1 box shape(pseudo 3nps)

3A1:4G1 box shape(pseudo 3nps)

4G1:4E2 box shape(pseudo 3nps)

4E2:5D2 box shape(pseudo 3nps)

5D2:5B3 box shape(pseudo 3nps)

5B3:3A1 at 12 box shape(pseudo 3nps)

BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps : Box shapes & TAB

  • 5B3:3A1

  • 3A1:4G1

  • 4G1:4E2

  • 4E2:5D2

  • 5D2:5B3

  • 5B3:3A1 at 12

BAGED octaves A pentatonic minor scale - 5B3:3A1 pseudo 3nps box shape

BAGED octaves A pentatonic minor scale - 3A1:4G1 pseudo 3nps box shape

BAGED octaves A pentatonic minor scale - 4G1:4E2 pseudo 3nps box shape

BAGED octaves A pentatonic minor scale - 4E2:5D2 pseudo 3nps box shape

BAGED octaves A pentatonic minor scale - 5D2:5B3 pseudo 3nps box shape

BAGED octaves A pentatonic minor scale - 5B3:3A1 at 12 pseudo 3nps box shape

Once the individual box shapes have been assimilated all five shapes should be linked together and played in one continuous exercise (with the first shape - 5B3:3A1 - being repeated at the 12th fret).

The complete TAB for the previously described exercise follows:-

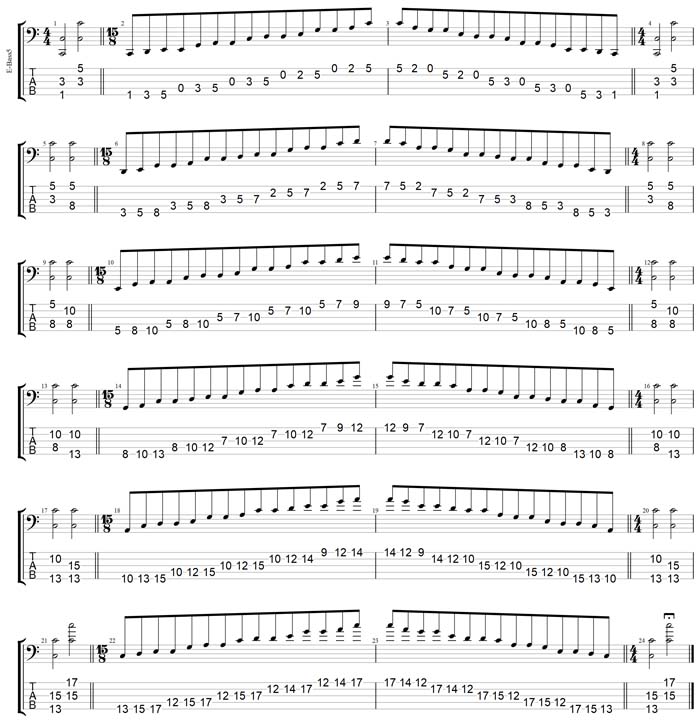

GuitarPro7 TAB: C pentatonic major scale pseudo 3nps box shapes

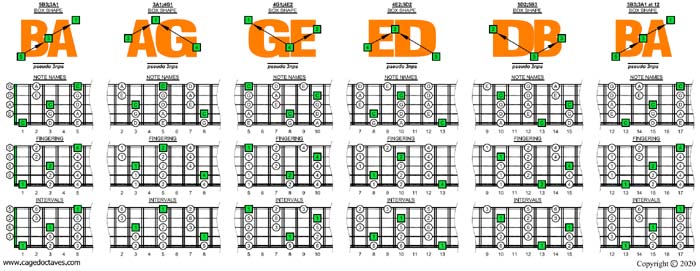

The box shapes for the previous exercise follow:-

BAGED octaves C pentatonic minor scale (pseudo 3nps) box shapes

BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps
Box shapes pdf & GuitarPro7 TAB pdf

Flash iconGuitar Pro 6 icon

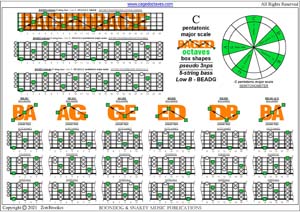

BAGED octaves C pentatonic major scale (pseudo 3nps) box shapes pdf

GuitarPro7 TAB: BAGED octaves C pentatonic major scale (pseudo 3nps) box shapes pdfGuitarPro7 TAB: BAGED octaves C pentatonic major scale (pseudo 3nps) box shapes pdf

BAGED octaves : 5-string bass (Low B - BEADG)
C pentatonic major scale - pseudo 3nps
Overall fretboard box shapes

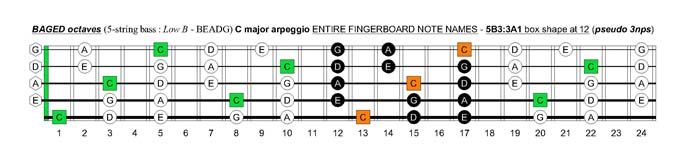

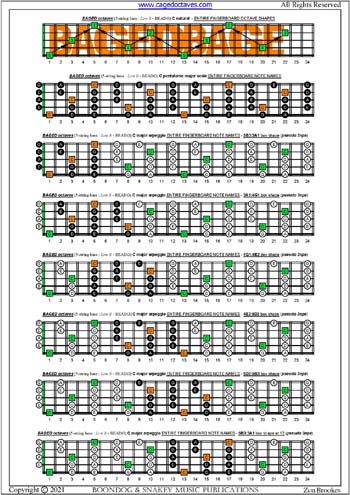

BAGED octaves C pentatonic major scale (pseudo 3nps) box shapes : entire fretboard notes

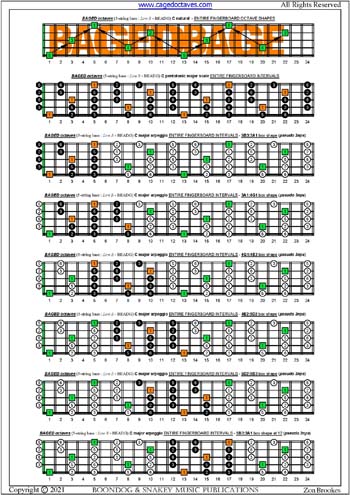

BAGED octaves C pentatonic major scale (pseudo 3nps) box shapes : entire fretboard intervals
